Mist Extraction System - Surface Grinder Ventilation

Mist Extraction System - Surface Grinder Ventilation



The Mist Extraction System features a durable design that enables you to place the ventilation directly at the point of grinding, effectively capturing mist and smoke before it can pollute your shop's air. Additionally, the Helix mast, exclusive to this system, concentrates mist back into liquid coolant for easy drainage into the catch pan. With the included accessory plates, there's no worry about direct spray or splashes reaching your ventilation system.

Suitable for Surface grinders equipped with a 3.5'' spindle housing

$295.00 USD
$295.00 USD
Sale Sold out
Taxes included.
View full details

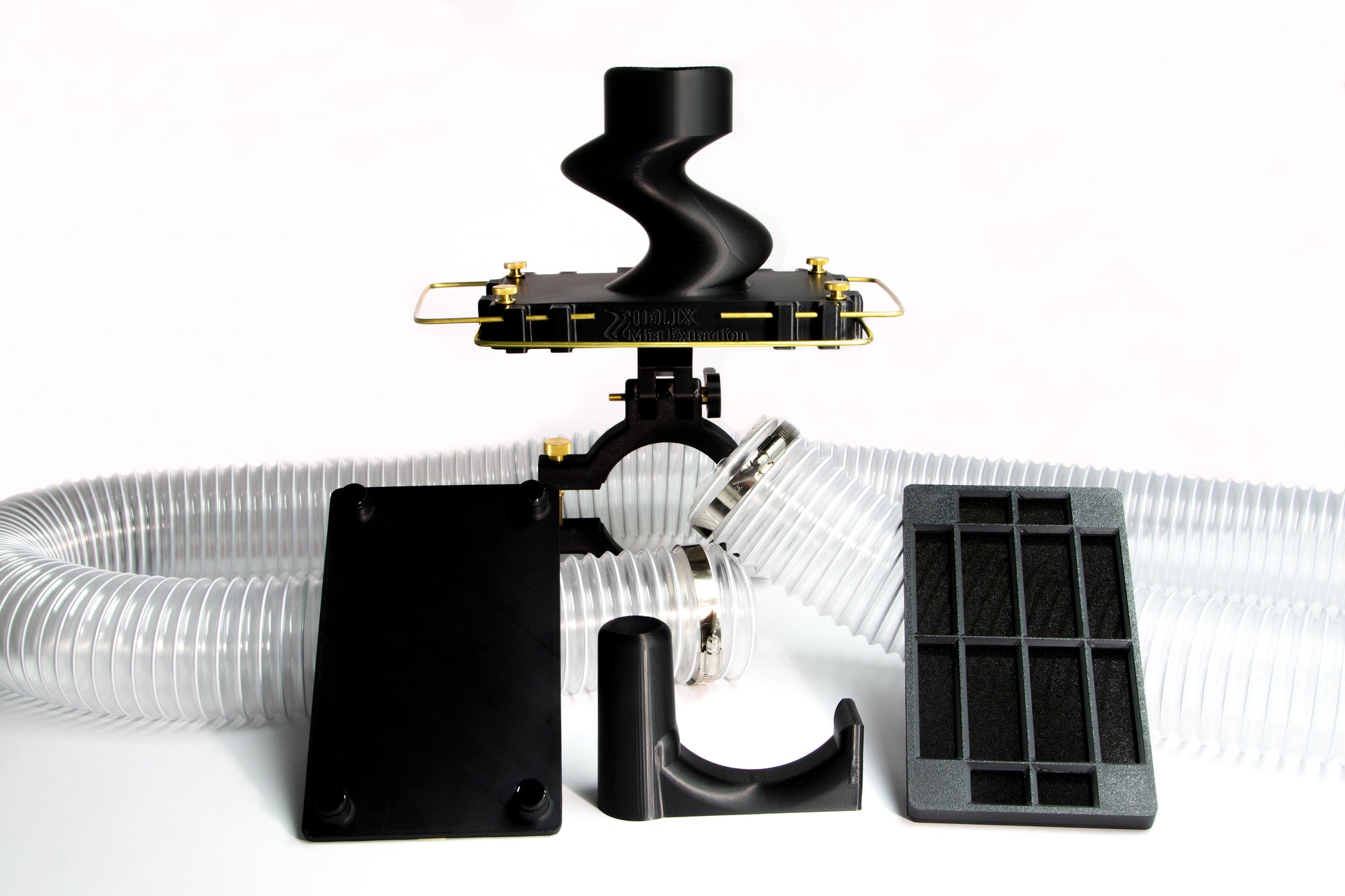

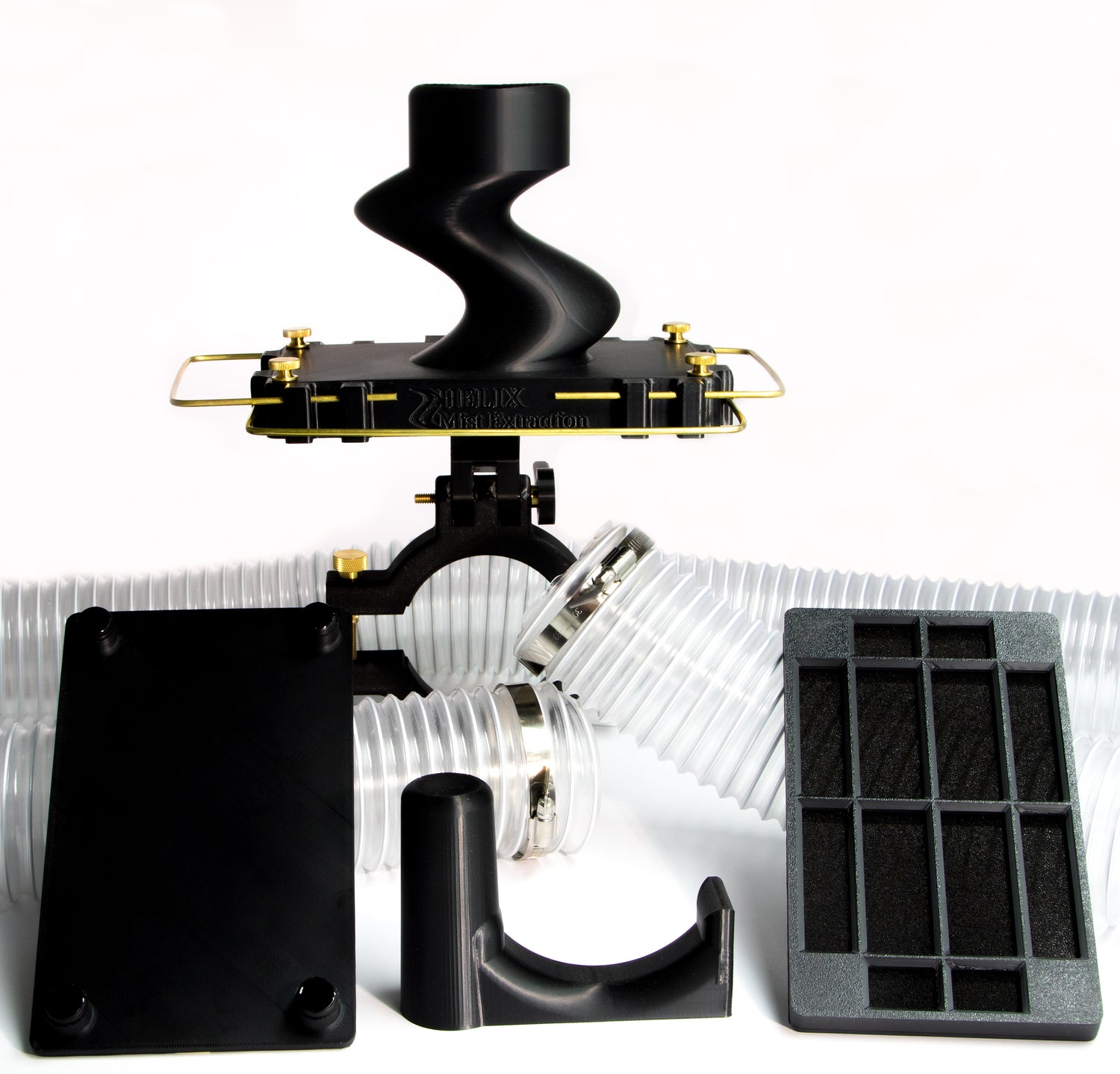

What's in the box

Includes everything needed to connect to your existing ventilation system.

1- Extraction Unit.

1- 3 inch DIA X 10 foot vacuum hose.

1- Vacuum hose hanger. { fits both straight and tapered screw covers }

2- 3 inch hose clamps.

2- Accessory bottom plates.

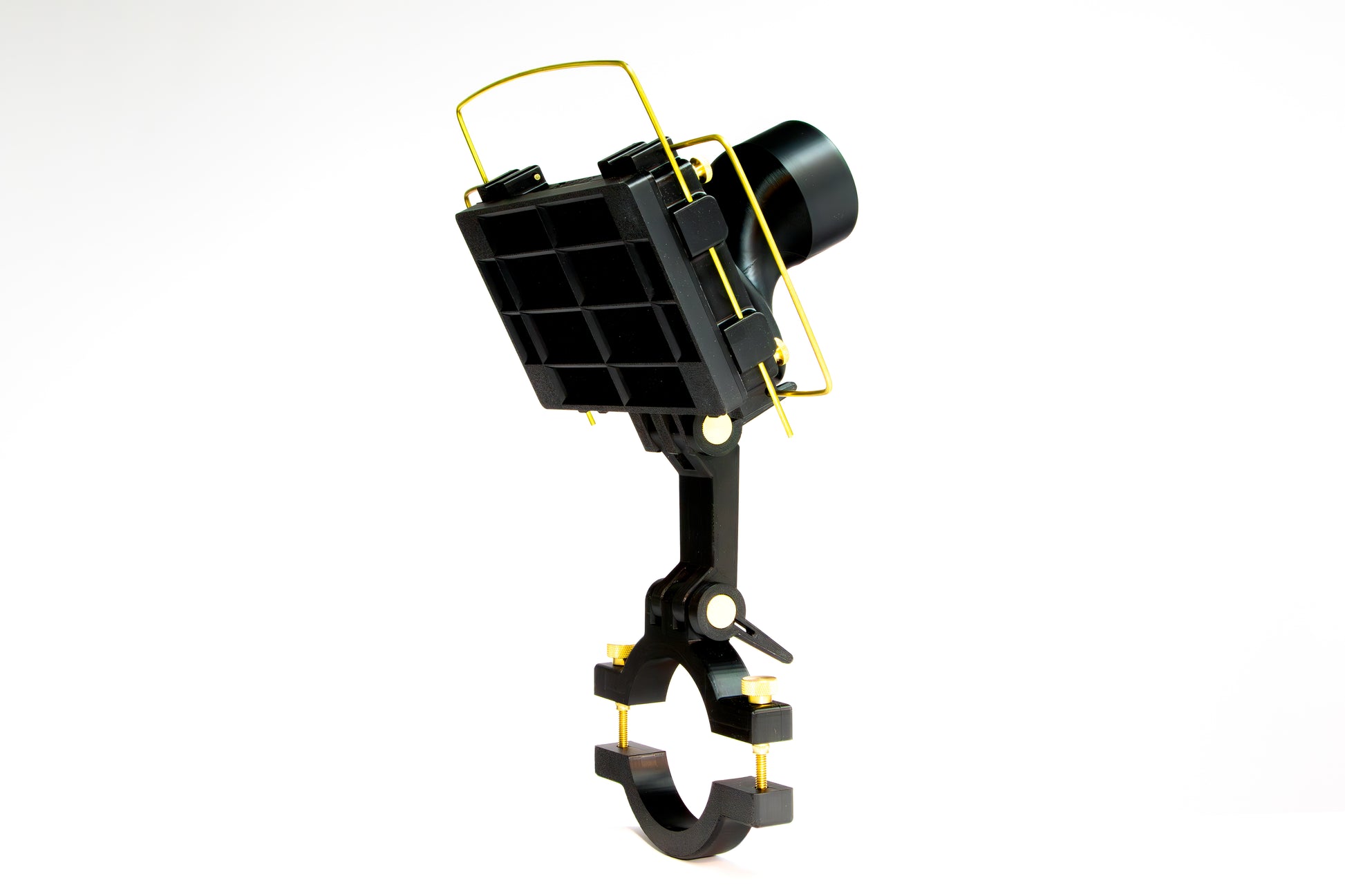

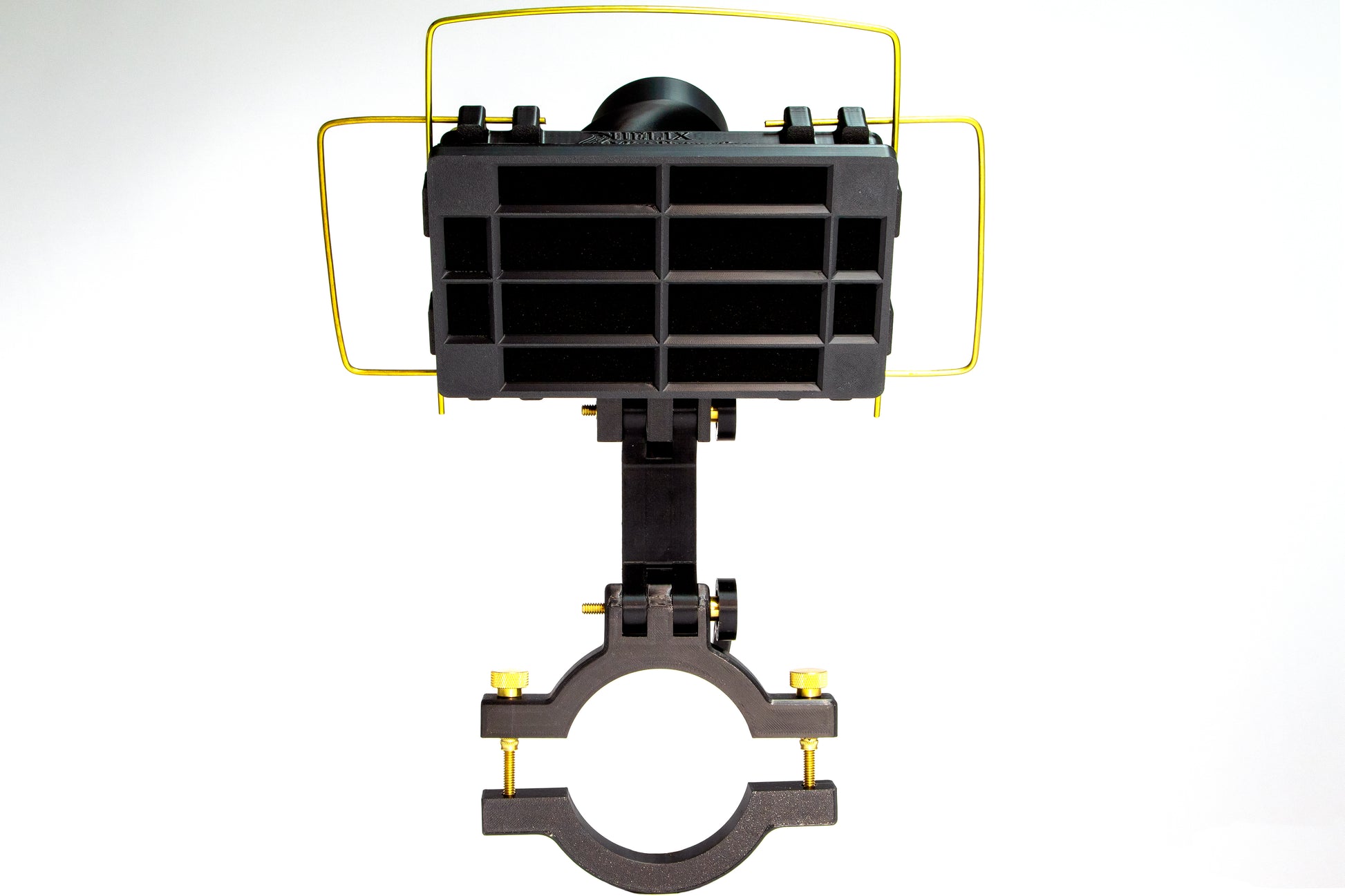

Helix Mist Extraction surface grinder ventilation.

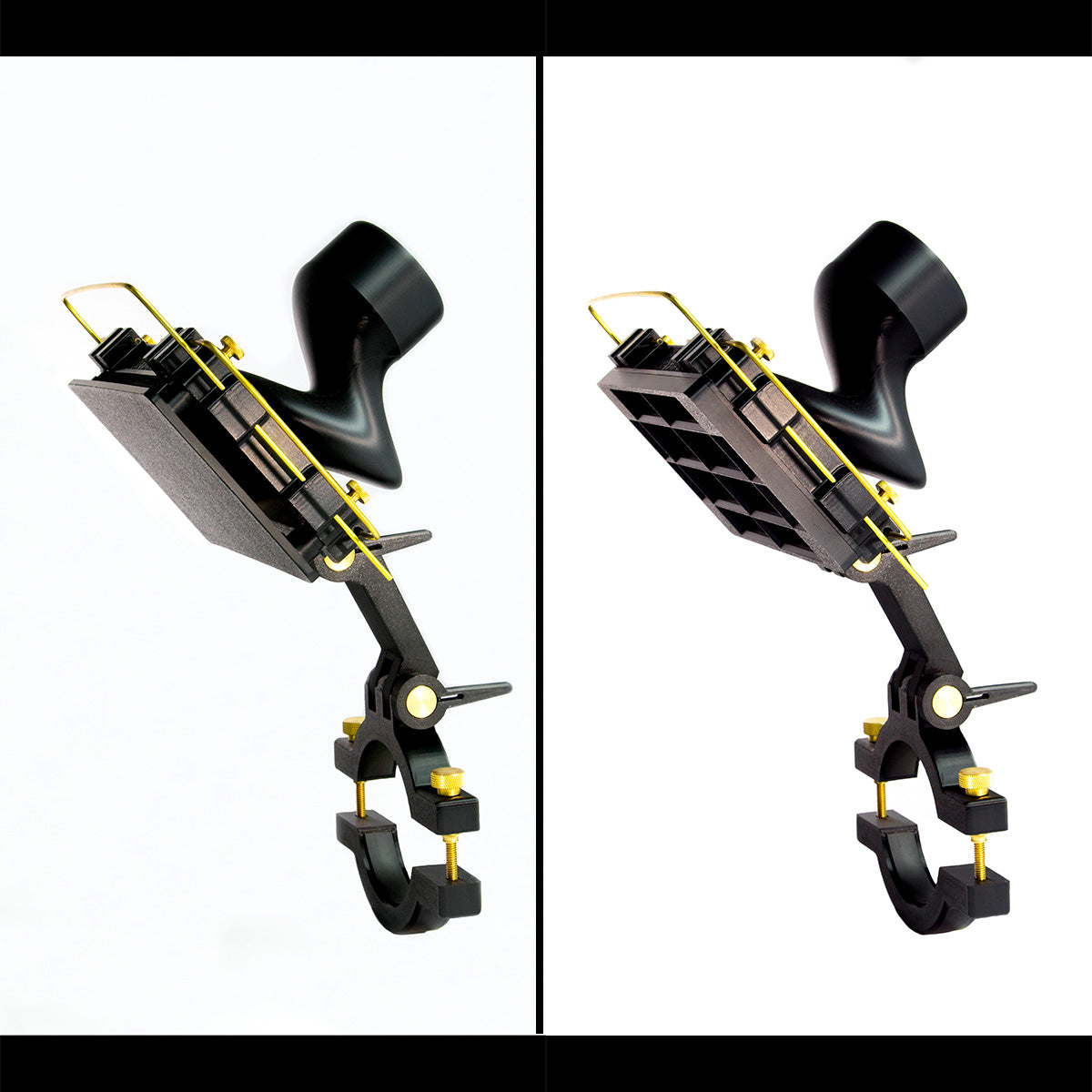

Included Accessory Plates

Interchangeable bottom plates held on with 4 powerful neodymium magnets makes switching between them quick and hassle free, NO TOOLS REQUIRED.

1- Solid plate for face wheels and over size grinding wheels.

1- Washable foam plate, easily removed and cleaned in minutes using warm water or coolant.

Can also be used without accessory plates when wheel cover is in place.

Quality Products Made with Premium Materials.

Manufactured out of Polycarbonate Utilizing the latest technology in additive manufacturing.

Reinforced with epoxy resin and fiberglass infill for superior strength.

All hardware is corrosion resistant Brass.

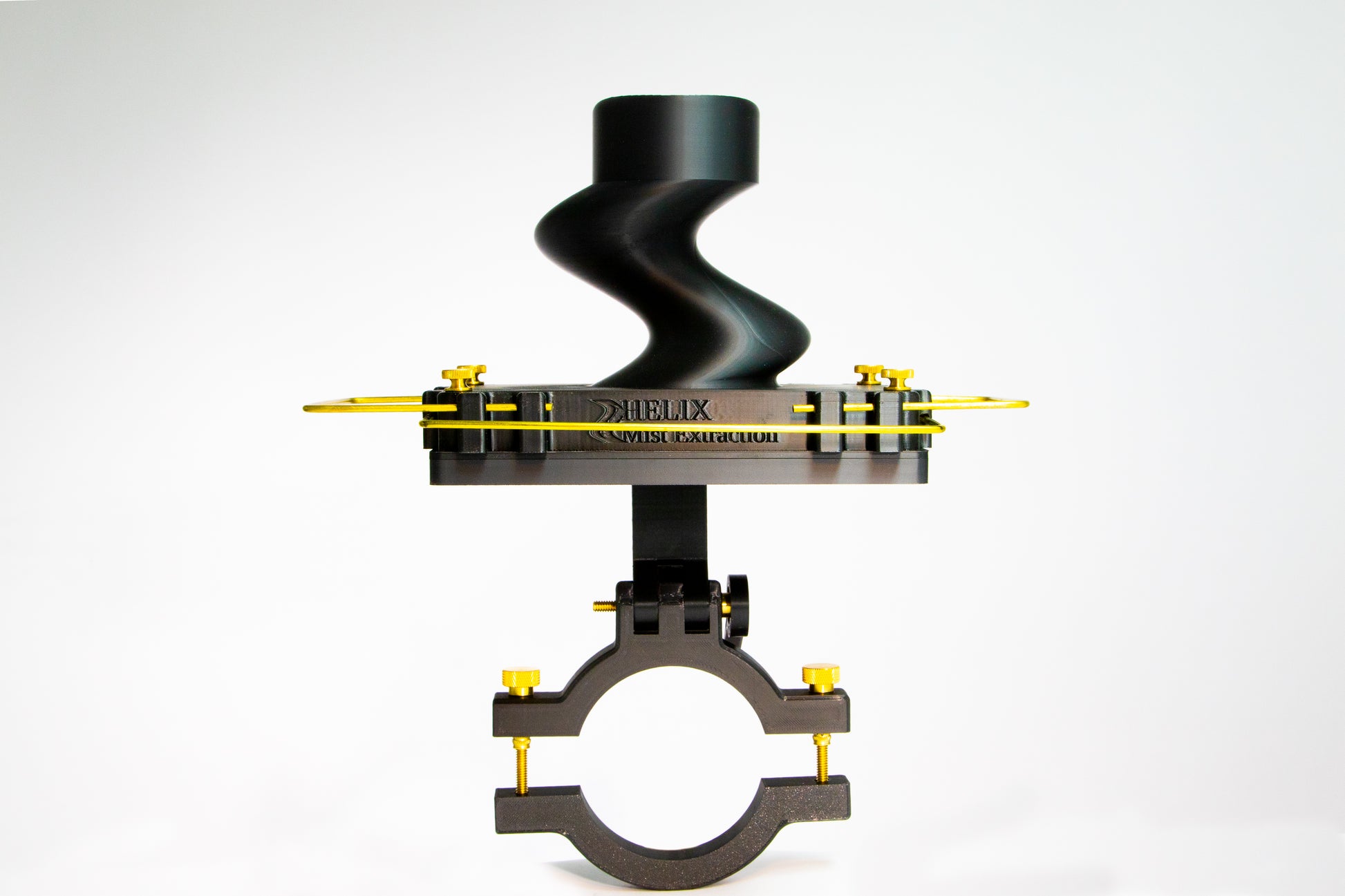

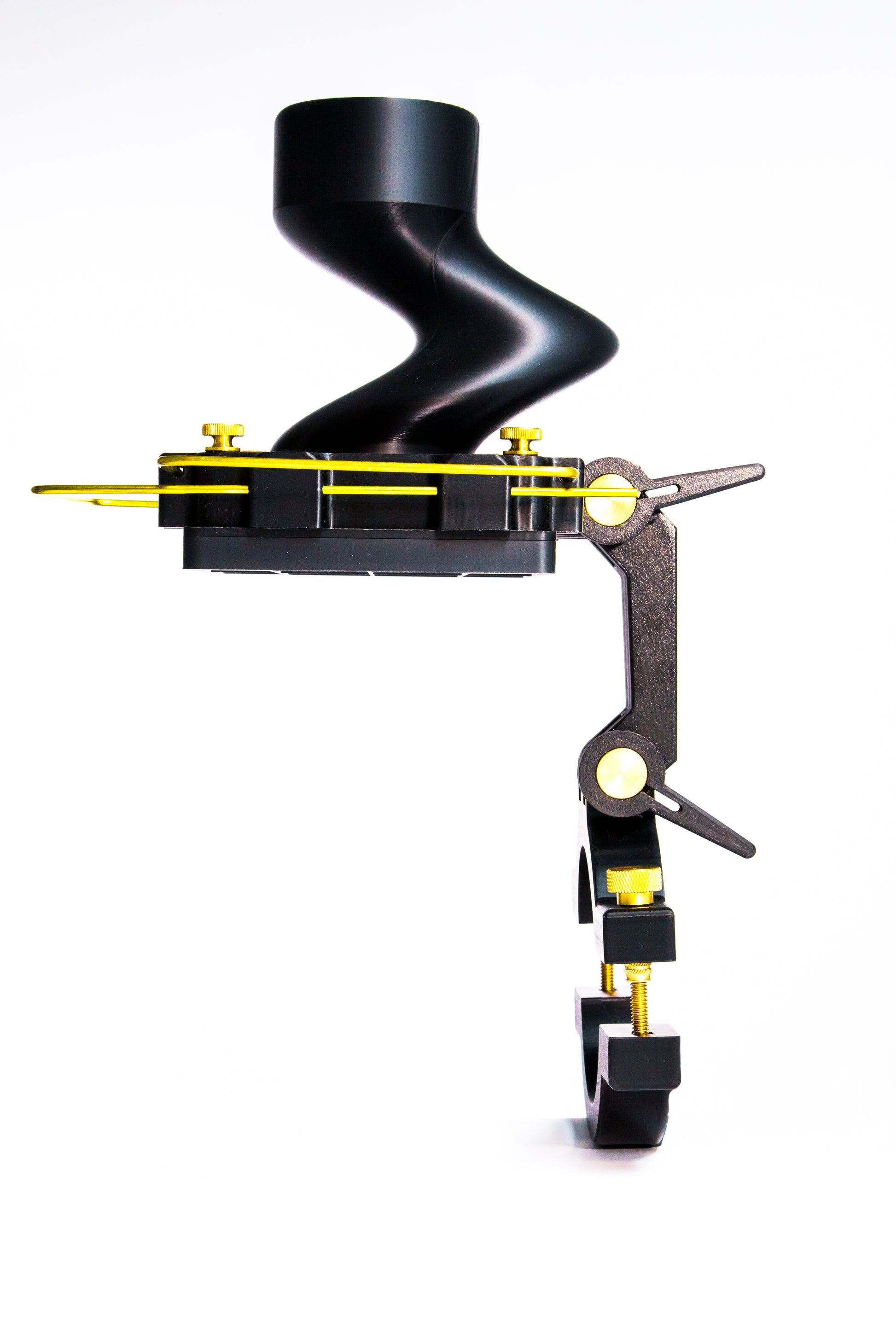

Helix Mist Extraction surface grinder ventilation.

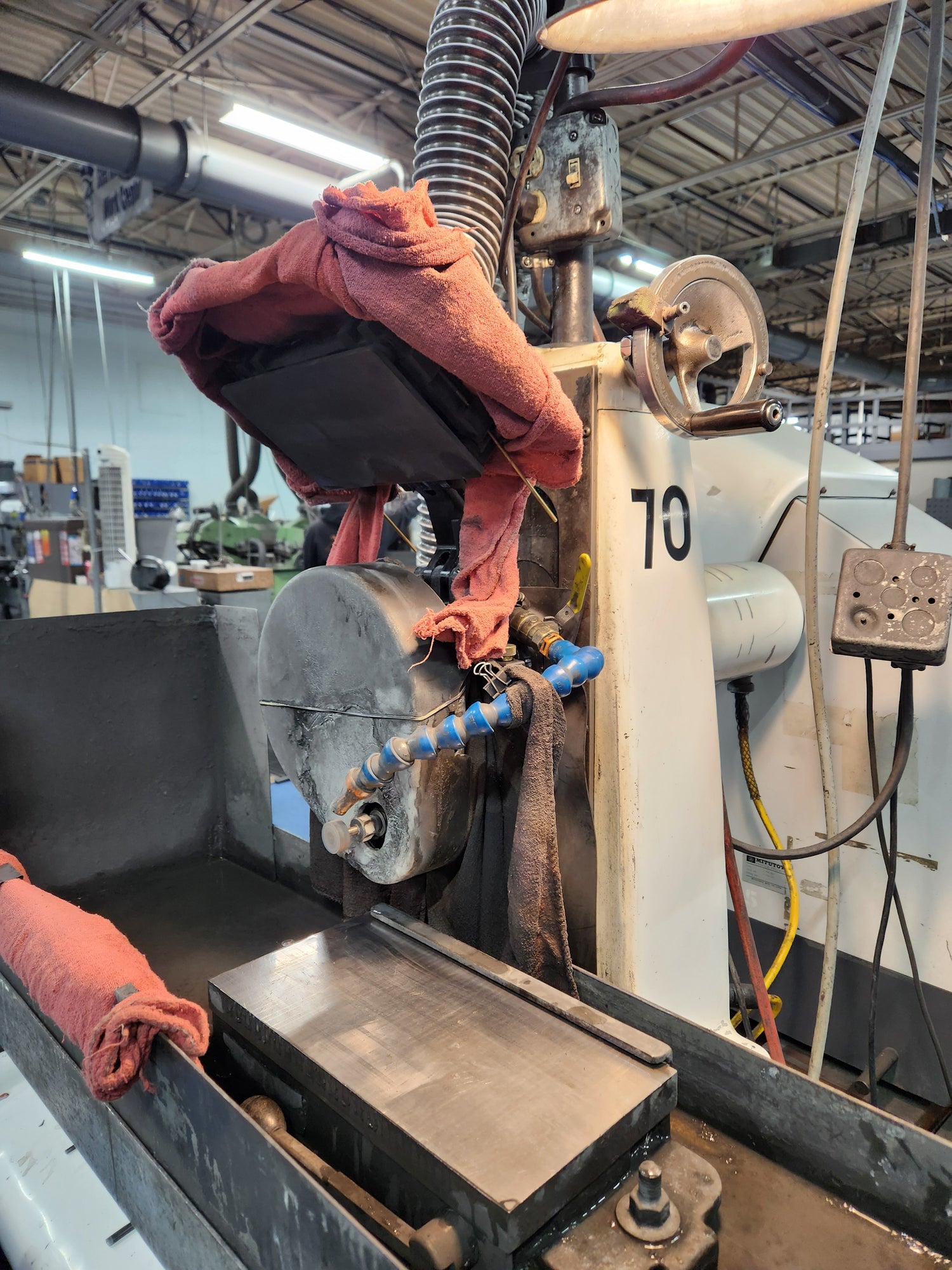

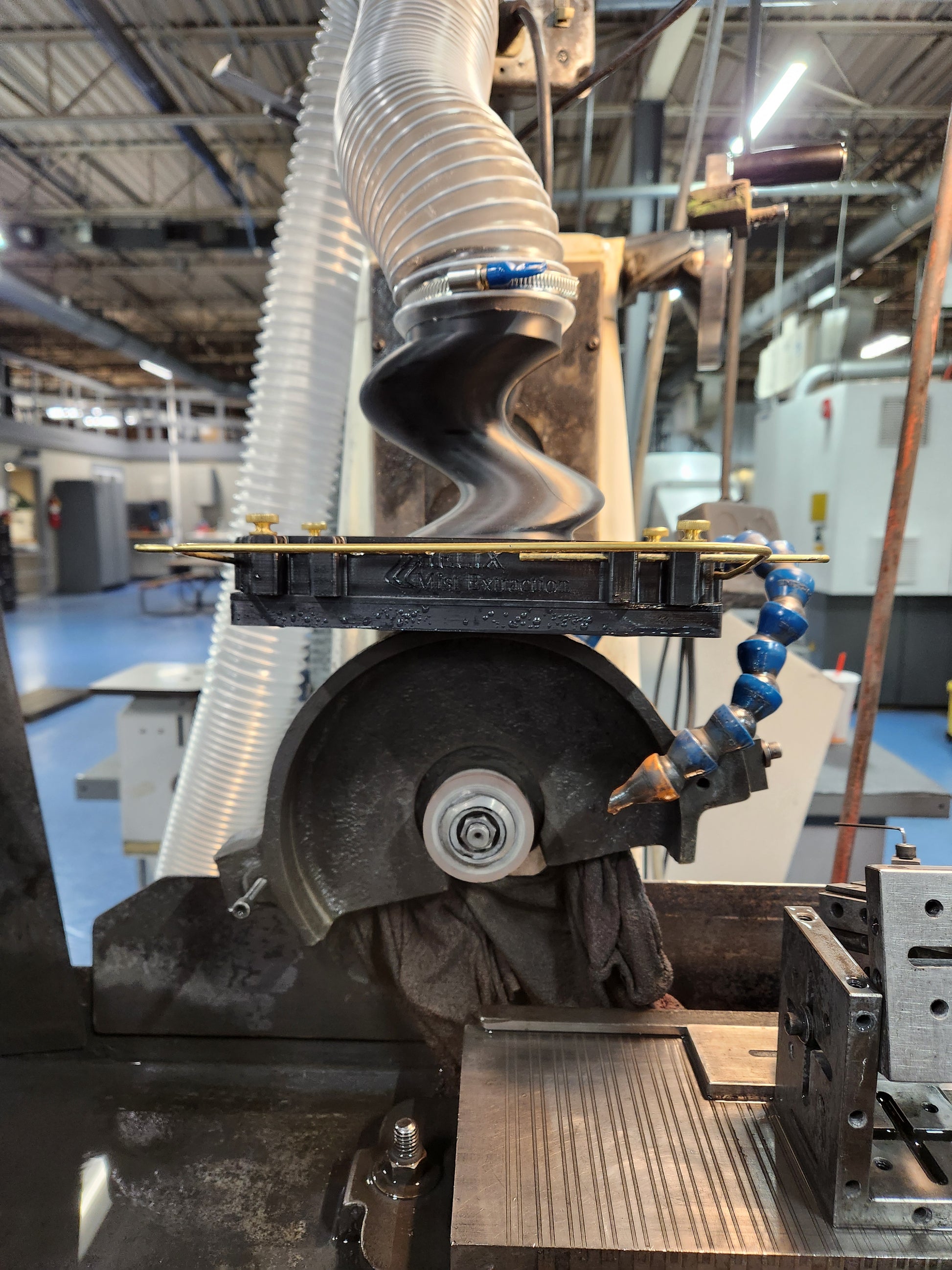

Incorporated Flexibility Facilitates Seamless Utilization

Compatible with high speed grinding attachments.

Extraction unit can remain in place during job changeovers or wheel replacements.

Quick adjust levers facilitate easy movement and locking in place until ready to resume grinding.

Lever operation allows for effortless unit positioning.

Product demonstration footage
